Backyard Foundry E-Zine: Investment Casting Pewter Rings
                             Posted 05-03-2009

I thought I would try some investment casting using pewter.  Pewter is nice because it has such a low melting point that is is very easy and fast to work with.  I am using plaster of Paris for the investment...this is not recommended...if there is moisture still in the investment, it could cause an explosion when you pour...especially if you are using hotter metals.  At the high temperatures you would need to fully burn out the water, POP would break down I have been told.
Google

Past E-zines
CNC ROUTER
CNC Router
(Click on picture to visit page)
Pewter Bell Video
Part one..You can click on the next two from there
Swedish Horse
Lost Foam Cast in Brass
Search my site here!
I tried a couple of different waxes and mixtures to do these.  My basic wax was made using parafin,candle wax, and toilet bowl ring wax.  The toilet bowl ring is a very soft wax.  I added some plastic bags (shopping bags) too when I melted the wax.  I heard you can do that somewhere to add strength to the wax.  For some rings, I tried a straight glue gun glue.  This was very easy to work with but it didn't burn out well for me.
Here are some of the rings.  The one on the left is a rough blank.  I used my glue gun to make a thin bead of wax in the middle strand...and straight glue on the one to the right.  Then I braided the strands.
Then I mounted them on wax.  This will become the sprue when the wax is burnt out.
Here are the patterns put into the "flasks"..."tin" cans.  I thought the one on the left was a neat idea...I melted some wax on the bottom of the can...then put the rings and sprue into the melted wax.  Then after the investment was poured and dry, I opened the other end of the can with a can opener and burned the wax out.
Here are the flasks are ready to pour the investment into.  I put duct tape on the top because when the flasks are put in the vacuum chamber, the investment will bubble up and then fall back down.
The investment was half plaster of paris mixed with half sand.  I poured the mix into the flasks and then put them into my vacuum chamber.
Remember...I do not recommend you do this...use real investment.  Plaster of Paris can be dangerous because of the way it holds onto water!
I thought I had taken other pictures of the investment burning out in my oven...but I can't find them.  What I did was to burn out the wax in a toaster oven.  I put the temperature to 200 for a few hours to burn out the wax, then turned it up more every few hours until it was at about 550 degrees F.  I figured that if the plaster of Paris was burned out to that temperature, that would be enough because the pewter is poured at around 525 degrees.

    To pour, I put the flasks onto my vacuum pad, turn on the vacuum for about 10 seconds and then pour.  Hopefully this will be more clear when you watch the video.
Here are some rings as cast.
And here are some completed ones.  My daughter's like them!
Here are some pictures of my vacuum set up.  I have a friend who does HVAC and when I asked him if he had any old compressors that I could make into a vacuum pump, he told me he had a little vacuum pump that he wasn't using because it was too small for him...so he gave it to me!  It was a happy day!

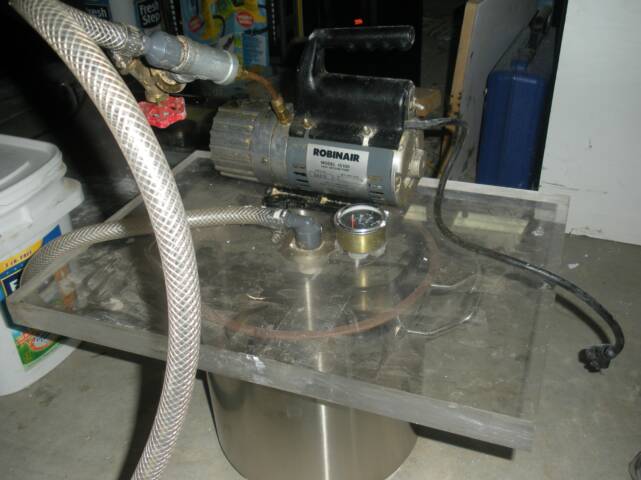

vacuum chamber
Plexiglass

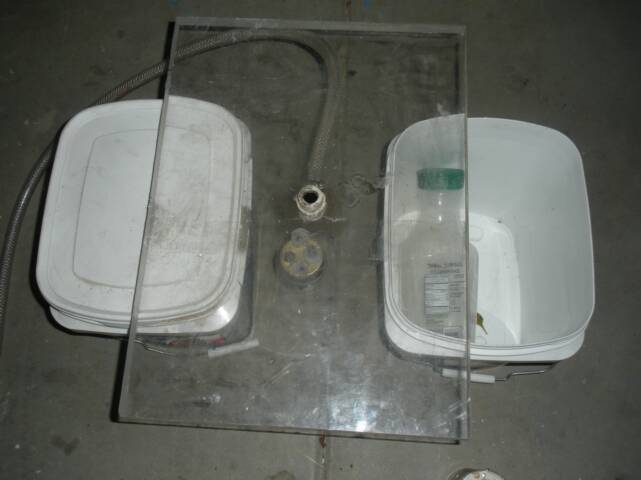

Plexi Upside down
Other Plexi with hole and weather stripping placed on top of 1st Plexi
Silicon Pad that flask gets put on for seal
freshly poured
